Justify

Each convenience operation has various parameters, which are specified in the preferences dialog (see VectorFirstAid: Preferences). By holding down the Option/Alt key while clicking a convenience operation button, a small dialog will come up allowing those parameters to be changed before the operation is made. These new parameters apply to that single use of the operation only.

3. Super Smart Remove Points Button

Reduces the number of anchor points in the selected paths while attempting to maintain their shapes. There are two parameters.

VectorFirstAid Super Smart Remove Points Parameters

a. Super Smart Remove Tolerance: Ranges from 1 to 100. The higher the tolerance, the more anchor points are removed, but the more the geometry of the path may change.

VectorFirstAid Super Smart Remove Example

b. Protect Sharp Corners: Determines whether corner type anchor points where the path has a sharp change in direction will be considered for removal. Enabling this setting lets you use a high tolerance to remove many anchor points without disturbing sharp corners, where the geometry of the path is usually more critical:

VectorFirstAid Super Smart Removal Protect Sharp Corners

4. Rejoin Paths Button

Rejoins paths which have been split apart into multiple segments back into a single path (or, if discontiguous, into multiple paths).

VectorFirstAid Rejoin Paths Example

The Rejoin Paths operation takes several parameters:

VectorFirstAid Rejoin Paths Parameters

a. Tolerance: The maximum distance that the endpoints of each segment can be from each other and still be joined, ranging from 0 to 6 pt. The default is 0.1 pt.

b. Rejoin Paths With Different Styles: Whether paths with different styles are allowed to be rejoined. When enabled, the style of the final path is taken from the section which is highest in the stacking order.

VectorFirstAid Rejoin Paths with Different Styles

c. Rejoin Paths With Different Directions: Whether paths that touch head-to-head or tail-to-tail are allowed to be rejoined. When enabled, the direction of the final path is taken from the section which is highest in the stacking order.

d. Rejoin Paths With Variable Width Strokes: Whether paths stroked with a variable width stroke are allowed to be rejoined. When enabled, the variable width profile for the final path is taken from the section which is highest in the stacking order.

If multiple sections are eligible to be joined, VectorFirstAid uses the one that results in a path with the smallest change in angle:

VectorFirstAid Rejoin Paths Angle Selection

5. Combine Point Text Objects Button

Combines the selected point text objects into as few point text object as possible while maintaining the position of all characters. Text can be combined both horizontally and vertically, but must be at the same angle.

VectorFirstAid Combine Point Text Example

VectorFirstAid Combine Point Type Parameters

A single parameter, Retain Horizontal Spacing, controls how horizontal gaps between characters and words are handled. When enabled (the default), kerning is modified and/or space characters are added to precisely duplicate the original spacing of the text. When disabled, the spacing is normalized when possible, to give the text the look it would have if it were not tracked or kerned. Gaps wider than a single space character will still be retained as a single space. This setting can be useful when opening certain PDF files where the text has been broken into individual characters with corrupted spacing:

VectorFirstAid Combine Point Text - Retain Horizontal Spacing

6. Replace All Missing Fonts Button

Replaces all missing fonts in the document with a specified font. Whether replacing a single missing font, or because the exact font is not critical because it will be changed later, this is much faster than going through the Find/Replace Font dialog.

VectorFirstAid Replace All Missing Fonts

The one parameter is the replacement font.

VectorFirstAid Replace Missing Fonts Parameters

7. Unoutline Text Button

Converts the selected type that has been outlined (converted to paths) back into editable text, if possible. VectorFirstAid refers to this process as “Unoutlining.” The first time this operation is used after installing the plugin, VectorFirstAid will open a new, temporary document and scan the currently installed fonts to build an internal database of their glyphs. This may take 5 to 20 minutes or even longer, depending on how many fonts are installed and their types. In particular, the SF Pro font family contains very high numbers of glyphs and will slow down the operation. However, the data is saved out to files, so this process only needs to be done once.

VectorFirstAid Unoutline Text Example

The Unoutline Text operation can handle most linear transformations of the outlines, including scaling (except that which reverses path direction), rotation, and shearing.

VectorFirstAid Unoutline Text Example 2

If type cannot be unoutlined, it may be due to several reasons. First, the correct font may not be present on the system. Second, the path outlines may have been altered in some way, making them different from the original outlines. For example, the starting point of the paths may have changed, or individual points may have been deleted or moved slightly. Finally, the Unoutline Text operation is not supported for fonts which contain more than 7,500 glyphs, with the exception of the SF Pro family.

The Unoutline Text operation takes several parameters:

VectorFirstAid Unoutline Text Parameters

a. Combine Glyphs When Possible: Enabled by default, this option combines the individual glyphs which have been recognized into as few point text objects as possible. Otherwise, each glyph is left as a separate point text object.

b. Ignore Clipping Paths: Ignores paths which are set as clipping paths for the purposes of conversion.

c. Unoutline Text Set: Specifies a pre-configured set of fonts to use when recognizing the outlined paths. Checking these outlines against every possible font can take some time, and might result in the conversion to a different font than expected (due to the fact that some simple glyphs, such as lower case l’s, are identical across many sans serif fonts when linear transformations are allowed). For this reason, if the font of the outlined text is already known, VectorFirstAid can use this information to ignore other fonts and recognize the text more quickly and reliably. Unoutline Text Sets are configured through the Preferences dialog (see VectorFirstAid: Preferences). A quicker method is to simply some select live text along with the outlined text before using Unoutline Text. In this case, VectorFirstAid will only consider the fonts present in the selected live text, ignoring any specified Unoutline Text Set.

If new fonts are installed after VectorFirstAid has created its font database, the database will be updated after the button is clicked. A progress dialog will be shown.

VectorFirstAid Font Database Update

If artwork other than outlined text is selected when performing an Unoutline Text operation, it generally causes no harm, because most artwork paths are unlikely to match the shape of a glyph. However, this is not true for basic shapes such as rectangles and circles, which are used in hundreds of fonts for glyphs such as hyphens, dashes, bullets, and so on. Since text, when outlined, always results in compound paths, VectorFirstAid will display a warning if a non-compound simple shape exists in the selection:

VectorFirstAid Unoutline Warning

Reform Text Editing Controls

1. Left and Right margins controls

This is an alternative to dragging the delimiters. Enter a value or use the arrow keys to adjust the position.

2. Scale control

Resizes the text to a given percentage of its original size.

3. Vertical checkbox

When checked, the text is vertical rather than rotated in the direction of the path. This option is useful for curves which represent 3D transformations.

4. Vertical angle control

By default 90° is "vertical".

5. Corner buttons

Defines the behaviour when text goes around a corner. There is no good way of flowing text around a sharp corner other than adding spaces to ensure that glyphs do not break on the corner. However if text is in fact non-text symbols, corner behaviour might be crucial.

6. Baseline radio buttons

Text can be:

   a: placed with its baseline on the path (normally what you want)

   b: placed so that the path goes through the text midpoint

   c: placed so that the path touches the top of the text

   d: placed so that the path touches the bottom of the text

7. Baseline offset control

The text baseline can be further refined with the baseline control.

8. Curve correction control

Adjust how the text distorts when going round curves. The value represents the adjustment to the offset from the curve. If text is not distorted nicely around sharp curves, setting this value will change the distortion.

9. Justification radio buttons

    a: align to left delimiter

    b: align to the center of the delimiters

    c: align to right delimiter

    d: justify (reflow text and adjust spacing so that lines fit exactly in delimiters)

    e: scale the text until it fits exactly within the delimiters

    f: scale the text horizontally but not vertically until it fits exactly within the delimiters

The Scale Justify operation creates a single, justified column of text (sometimes known as “slab text”) from one or more selected text objects. Justification is done by scaling up each line of text to match the width of the longest line. Any text rotation is removed, and the top-to-bottom order of the text is retained.

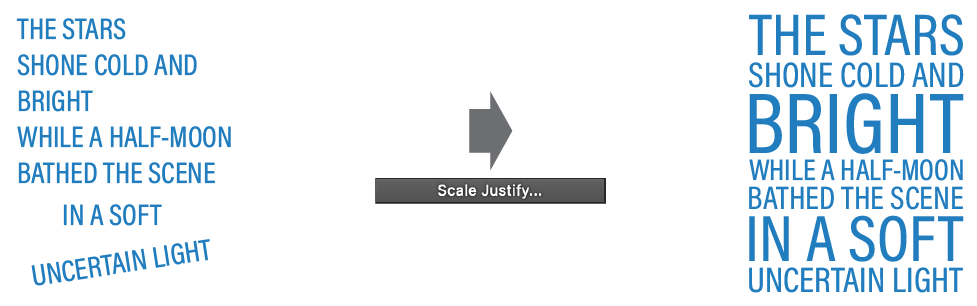

QuickOps Scale Justify Overview

With at least one text object selected (except text-on-a-path objects, which are not handled), clicking the button brings up the settings dialog:

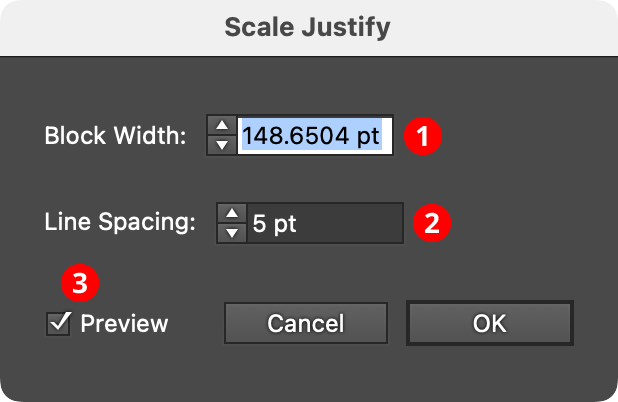

QuickOps Scale Justify Settings

1. Block Width

Specifies the width of the justified block of text. When the dialog is first brought up, the width will initially be set to that of the longest line of selected text, but it can be adjusted up or down as desired (from 1 pt to 4000 pt).

2. Line Spacing

Specifies the space between the lines of text, from –1000 pt to 1000 pt. When set to zero, the lines will just touch (remembering that glyphs with ascenders, descenders, serifs, or curves may make it appear as if there is still some space between the lines). Negative values can be used to create overlapping lines of type:

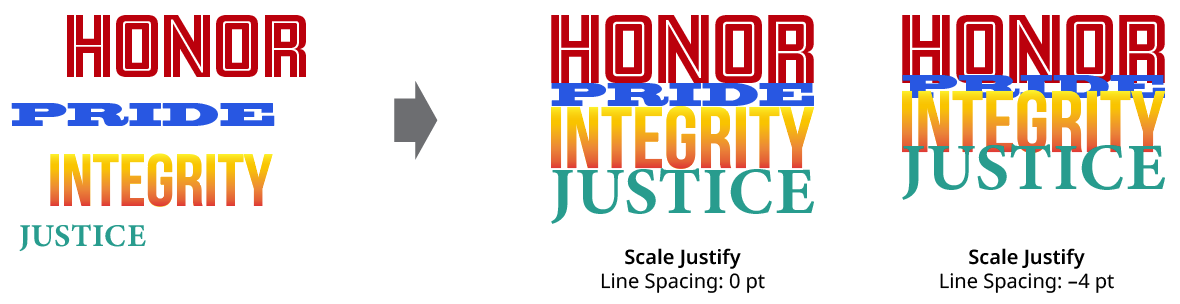

QuickOps Scale Justify Line Spacing

3. Preview

When Preview is enabled, the scale-justified text will be previewed on the artboard, and will update whenever the settings are changed. Turning Preview off will show the text in its original position.
